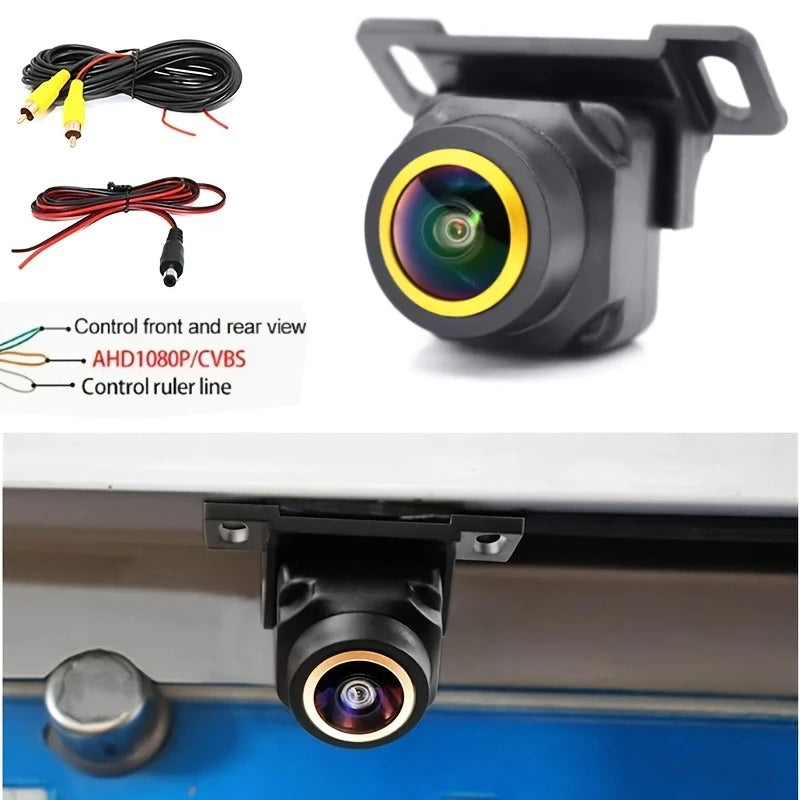

Professional-grade car backup camera with 170° wide-angle lens and advanced night vision. Switchable AHD/CVBS output ensures compatibility with most vehicle monitor systems. Features 1080p video resolution and 6-meter video cable for flexible installation.
Key Features
170° wide-angle viewing for maximum rear visibility
1080p video resolution for clear image quality
Night vision capability for low-light reversing
Switchable AHD/CVBS signal formats for monitor compatibility
6-meter video cable for extended reach
Universal fit for most vehicles
Hard-wired power connection (≤36V)
Durable ABS housing with glass and plastic lens
CE certified
Installation & Setup

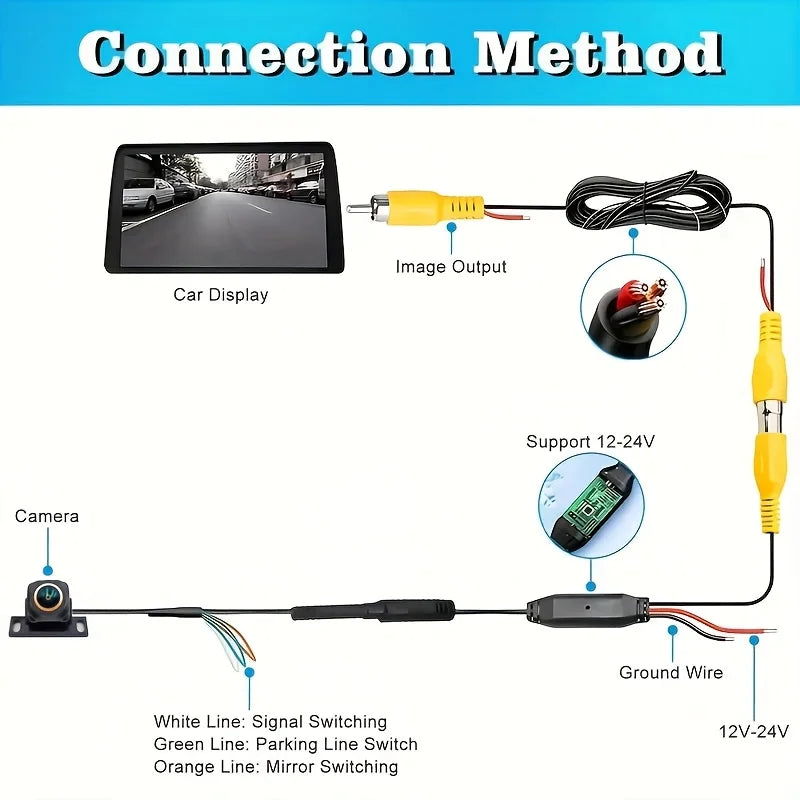

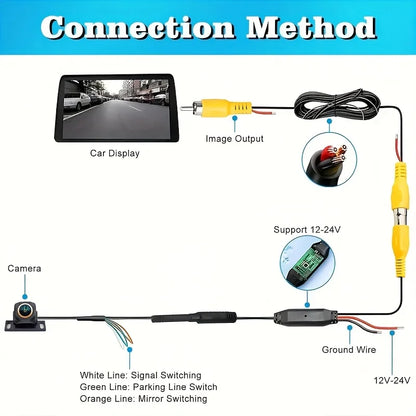

Signal Format Selection: This camera supports both AHD and CVBS signals. Verify your vehicle's monitor compatibility before installation. AHD is the default setting; to switch to CVBS, cut the orange wire.

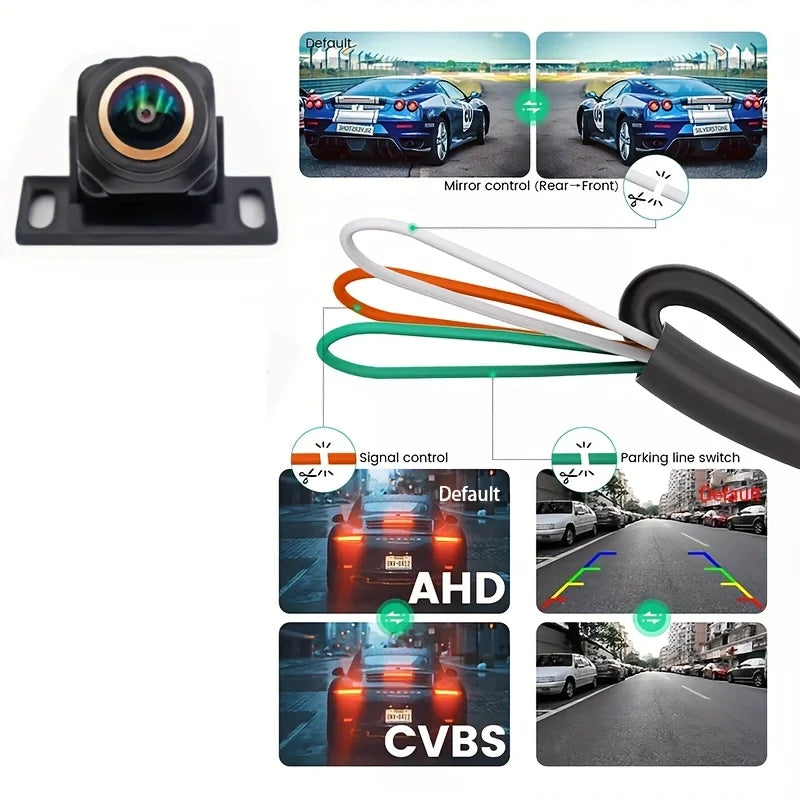

Cable Functions: The camera uses three control wires — Orange (AHD signal), Green (mirror/front view), and White (guideline display). Cut any wire to toggle its corresponding function.
Troubleshooting: If the monitor displays no signal or dark image, verify the correct signal format is selected for your monitor type, check all connections are secure (especially the red trigger wire to your reverse light), and confirm your monitor's PAL/NTSC standard matches the camera output.
Specifications

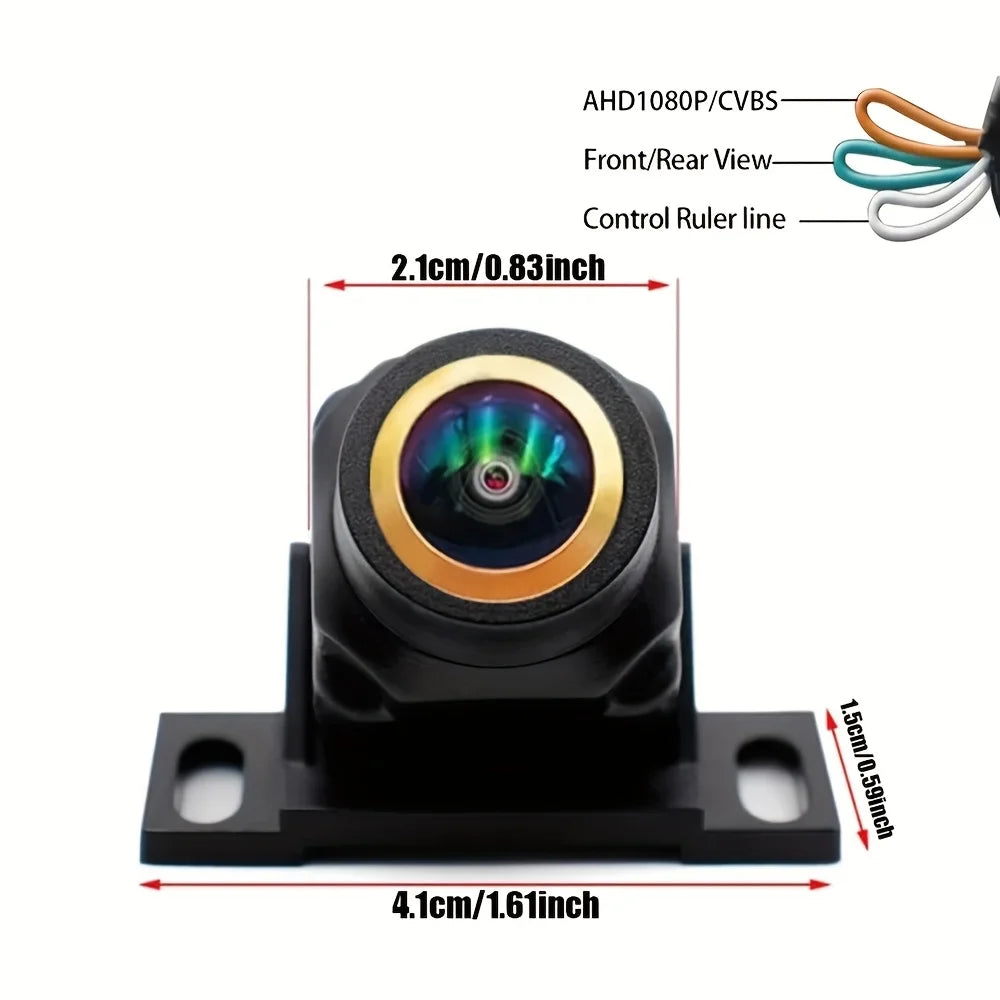

Video Resolution: 1080p | Viewing Angle: 170° | Cable Length: 6M | Operating Voltage: ≤36V | Material: ABS housing, plastic and glass lens | Certification: CE | Item ID: EY1360484
