Please note that the AHD signal format works exclusively with AHD monitors. Check if the monitor in your vehicle is compatible with the AHD signal. If it isn't, you will have to change to the CVBS signal. If your car's monitor cannot support an AHD camera, the AHD signal will not function. To change to the CVBS signal, kindly cut the orange loop. The three functions that are controlled by cables.

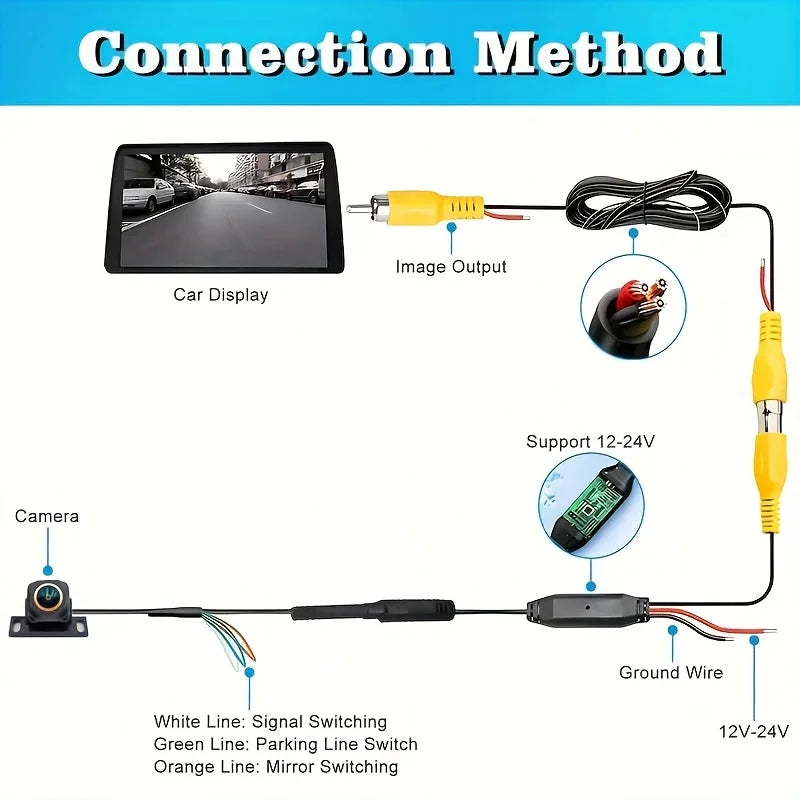

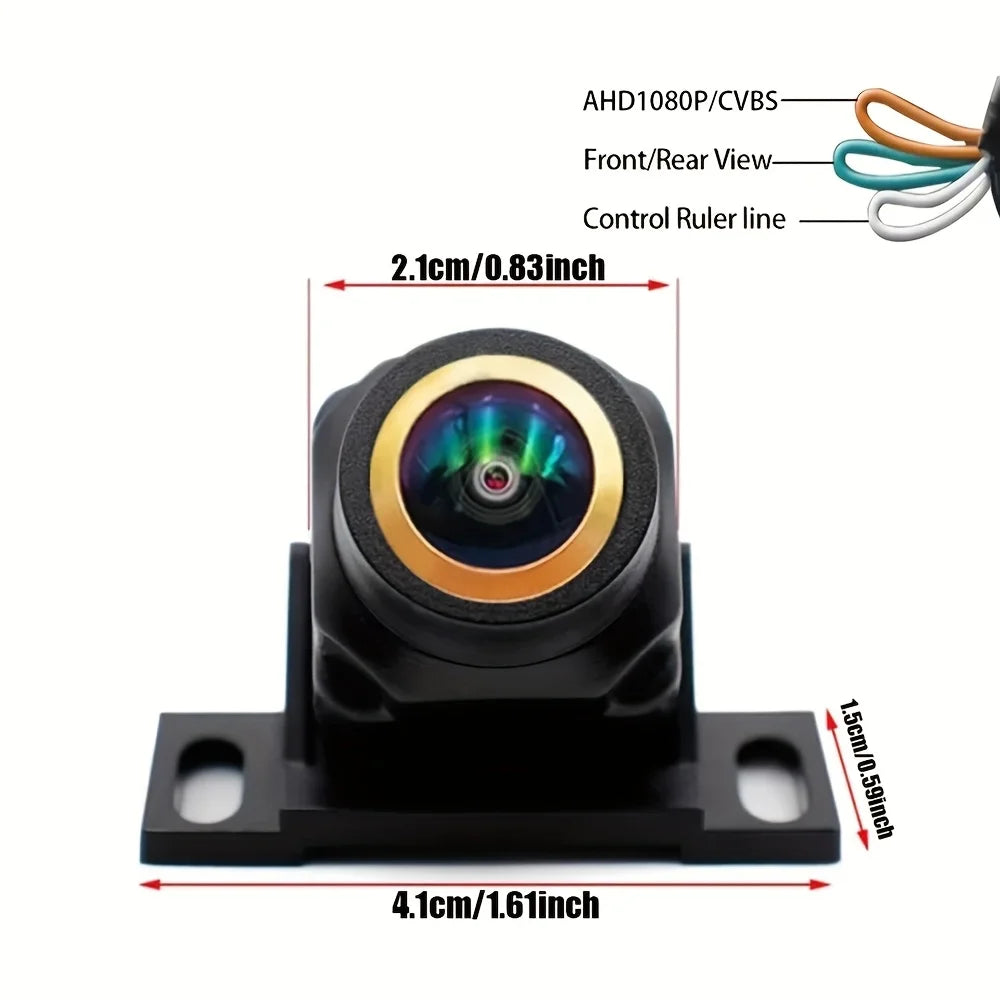

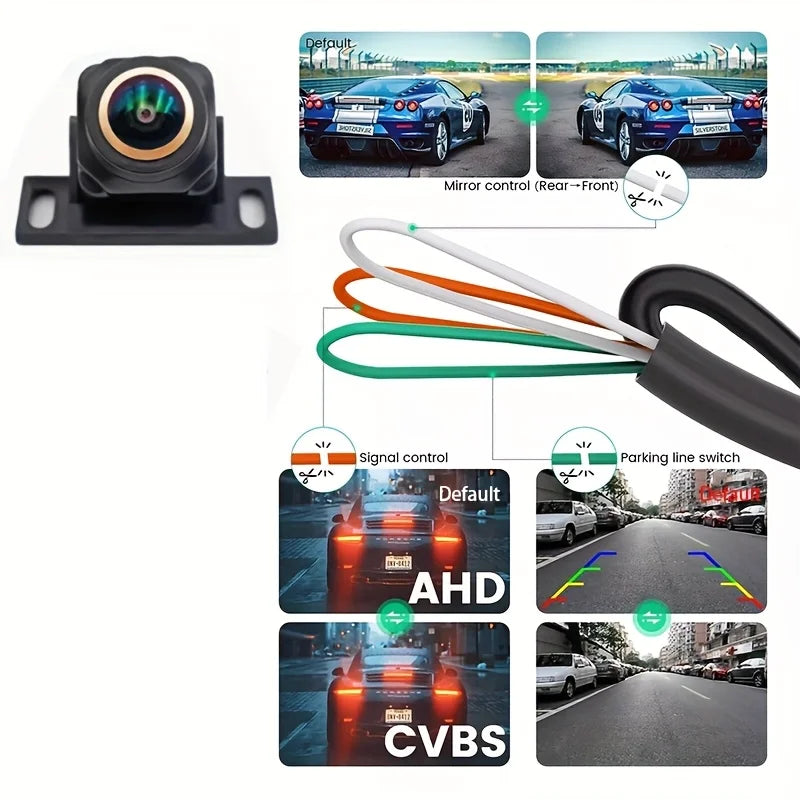

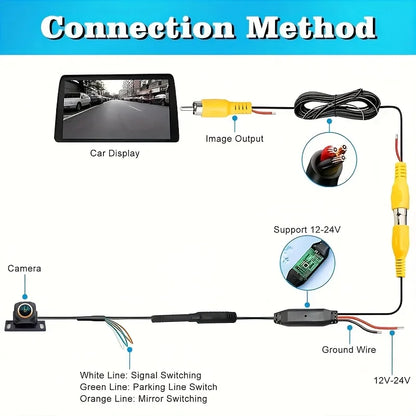

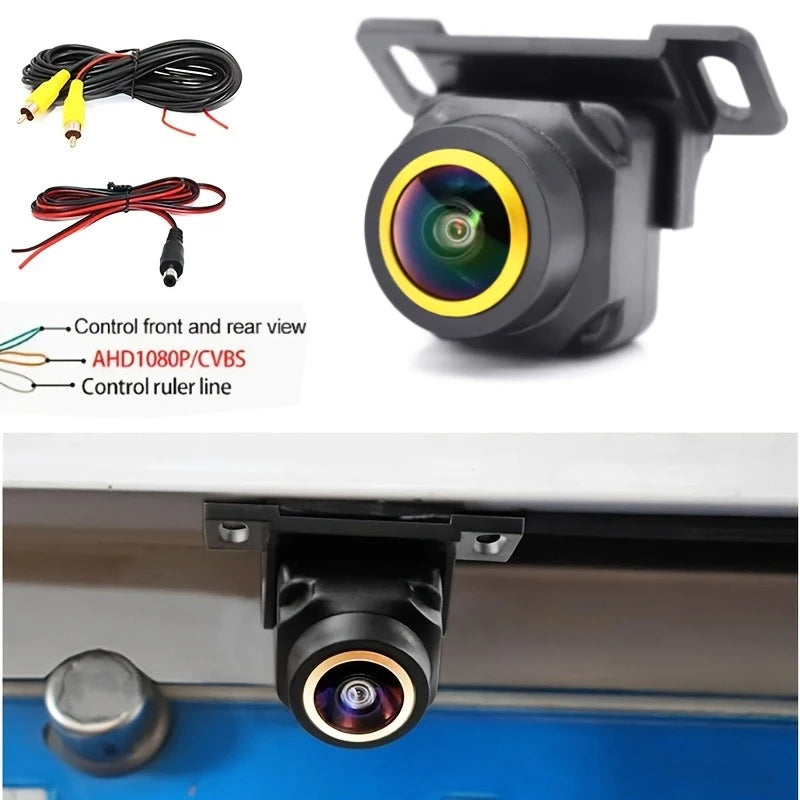

Orange wire: AHD signal (default) To switch to CVBS signal (cut) Green wire: Mirror (default) To switch to Front (cut) White: Guideline ON (default) To switch to guideline OFF (cut)

What actions should I follow if the backup camera is linked but the screen displays no signal, a dark screen, and no visuals?

A) Check the type of your signal (AHD/CVBS) and choose the right one to use the camera. B) Make sure your connections are accurate; the red trigger wire must be connected to your reverse light and the monitor's reverse-in cable. C) If your monitor has AUX-IN capability, you can connect it there.

D) Selecting the wrong signal standard (such as PAL/NTSC) will lead to a display in shades of gray and white. Ensure you choose the right signal standard for the camera to function properly and then restart its power. The CVBS camera adheres to the NTSC standard, whereas AHD1080P is supported.
